basiCube 10 - basiCube 14
SCANLAB's basiCube galvo heads are ideal entry-level 2D scanning systems for deflecting and positioning laser beams in the working plane.

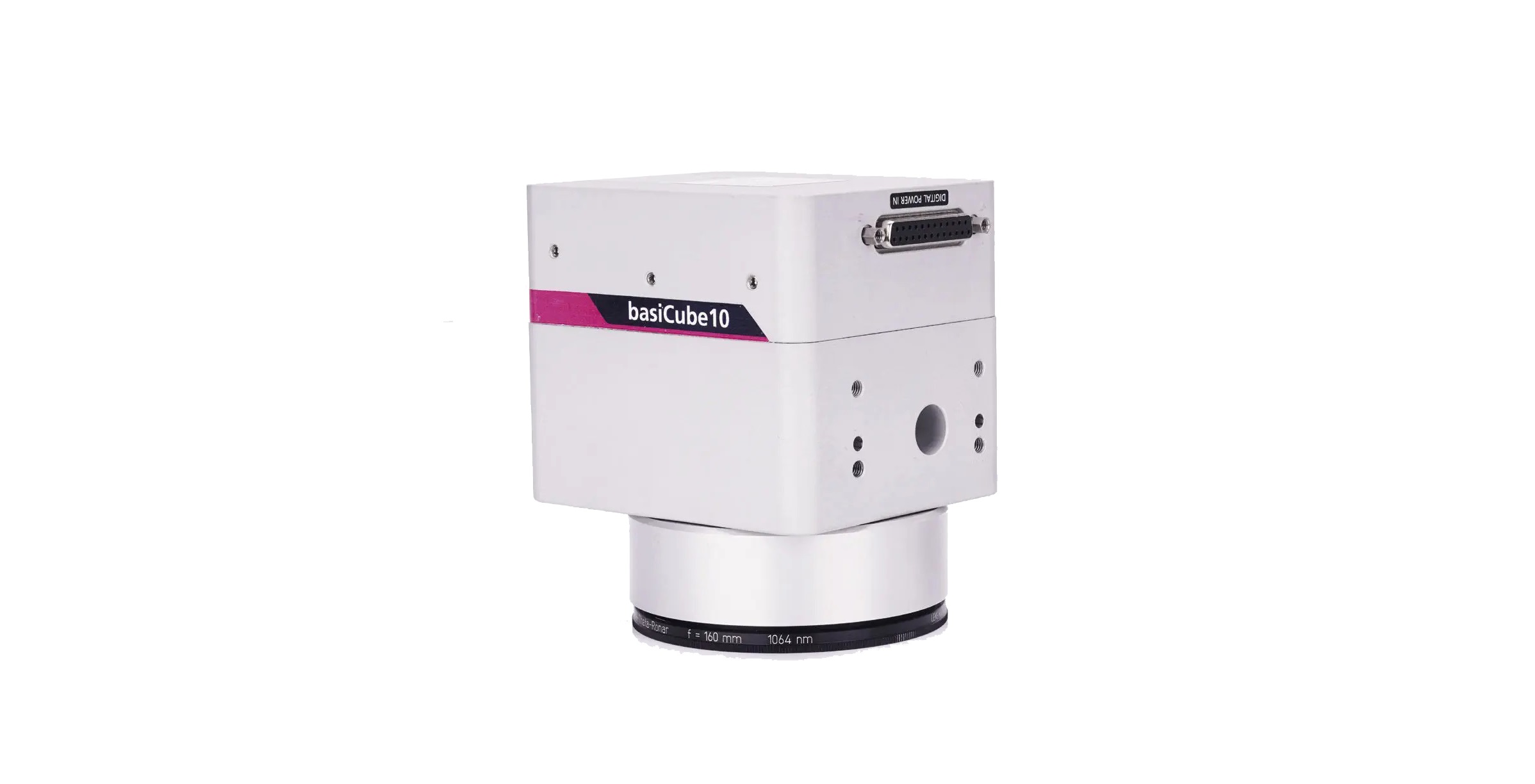

basiCube 10
| Type | basiCube 10 |
| Aperture [mm] | 10 |
| Tracking error [ms] | 0.14 |
| Tipik hızlar | |
| İşaretleme Hızı [m/s] | 2.5 |
| Konumlama Hızı [m/s] | 12.8 |
| Yazma Hızları | |
| İyi Yazma Hızı [cps] | 800 |
| Yüksek Yazma Hızı [cps] | 570 |
| Adım tepki süresi | |
| %1 Tam Ölçekli [ms] | 0.35 |
| %10 Tam Ölçekli [ms] | 0.35 |

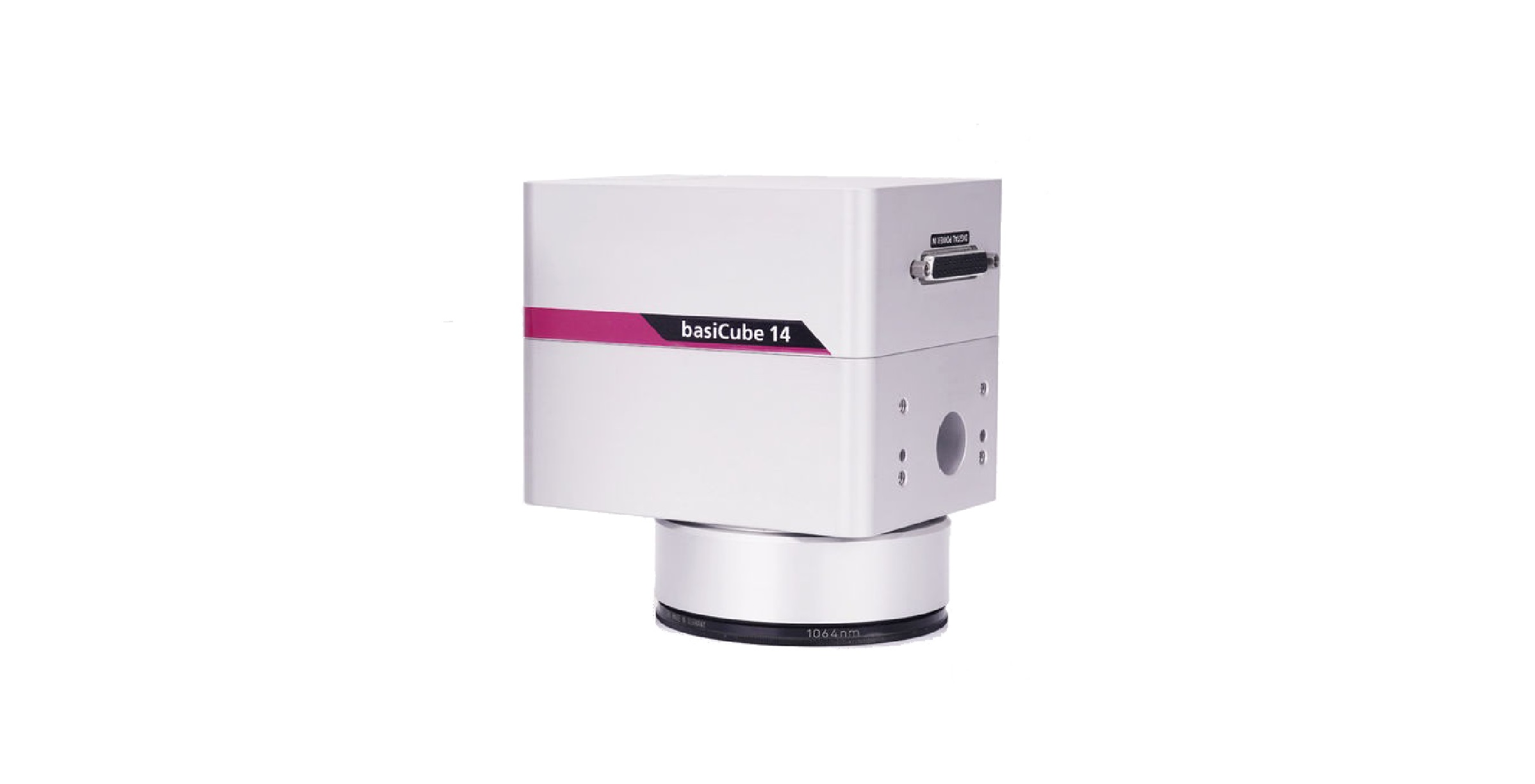

basiCube 14
| Type | basiCube 14 |
| Aperture [mm] | 14 |
| Tracking Error [ms] | 0.18 |
| Typical speeds | |
| Marking Speed [m/s] | 2.0 |
| Positioning Speed [m/s] | 12.8 |
| Writing Speeds | |
| Good Writing Speed [cps] | 800 |
| High Writing Speed [cps] | 375 |
| Step Response Time | |
| %1 Full Scale [ms] | 0.45 |
| %10 Full Scale [ms] | 0.45 |
| Type | basiCube 10 | basiCube 14 |
| Aperture [mm] | 10 | 14 |
| Tracking Error [ms] | 0.14 | 0.18 |
| Typical speeds | ||
| Marking Speed [m/s] | 2.5 | 2.0 |
| Positioning Speed [m/s] | 12.8 | 12.8 |
| Writing Speeds | ||
| Good Writing Speed [cps] | 800 | 800 |
| High Writing Speed [cps] | 570 | 375 |
| Step Response Time | ||
| %1 Full Scale [ms] | 0.35 | 0.45 |
| %10 Full Scale [ms] | 0.35 | 0.45 |
